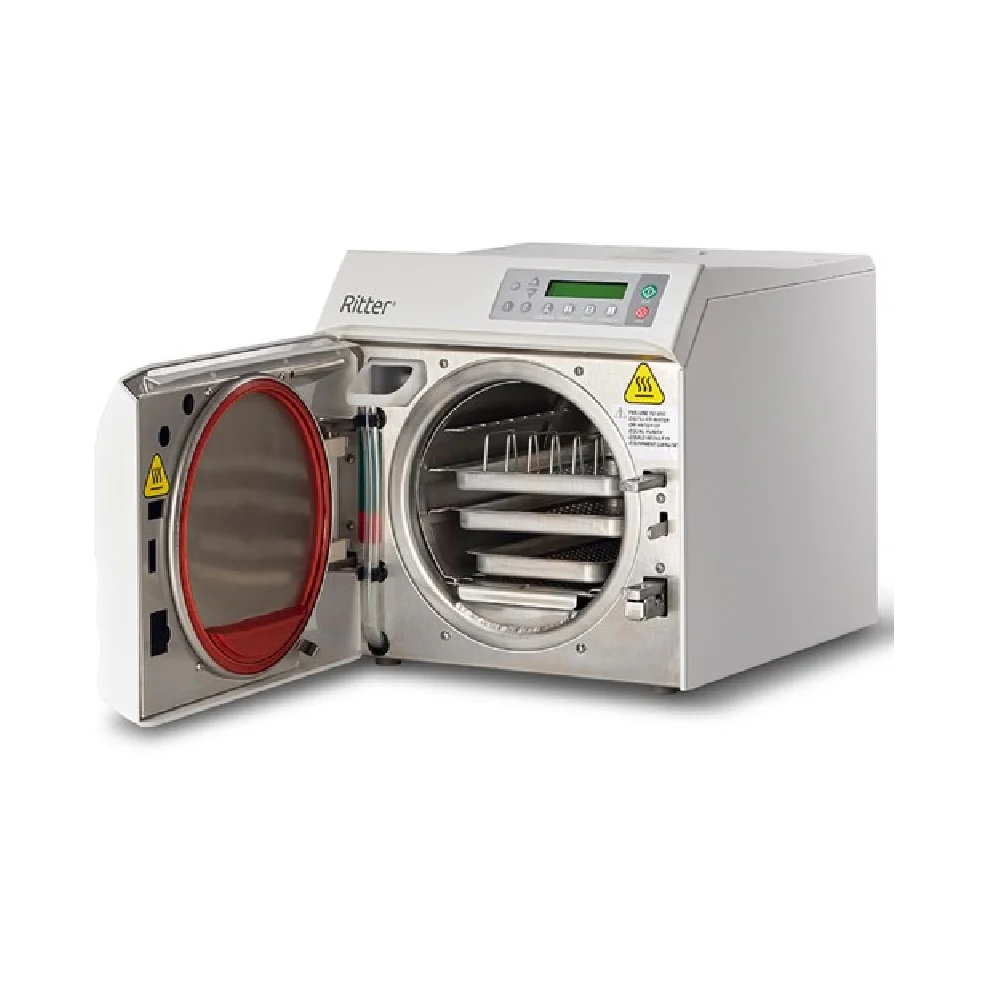

The M9D autoclave couldn’t be easier and is time tested for reliability. You simply load it set it and forget it. Select your cycle and the time is set for you. Press Start and the M9D fills with the correct amount of water. Once the sterilization process is complete, simply open the door to dissipate the steam and allow the instruments to dry.

• Steam Flush Pressure Pulse Air Removal System
• 9" x 15" chamber
• Self-program controls
• Easy-to-read LCD display
• Includes data logger
• Printer to be bought separately

M9D Autoclave Overview

The M9D autoclave is exceptionally easy to use and renowned for its long-term reliability. Just load your instruments, choose the appropriate cycle, and press Start—the unit takes care of the rest. It automatically fills with the correct amount of water and begins the sterilization process. When it's done, open the door to release steam and allow the contents to dry.

Key Features:

• Chamber Dimensions: 9" diameter x 15" deep

• Steam Flush Pressure Pulse Air Removal System: Ensures thorough steam penetration

• Customizable Programs: Create cycles tailored to specific sterilization needs

• Pre-Set Cycles: Convenient one-touch operation

• LCD Display: Clear, easy-to-read interface

• Data Logger Included: Automatically records sterilization data

• Warranty: One year (includes parts and labor)


Specifications:

• Overall Dimensions:

  • Length (with plug): 20.4" (51.8 cm)

  • Width: 15.3" (38.9 cm)

  • Height (with printer): 15.8" (40.1 cm)

• Minimum Countertop Area: 15.3" x 17.9" (38.9 cm x 45.4 cm)

• Chamber Capacity:

  • Volume: 3.5 gallons (13.4 liters)

• Trays:

  • 2 large: 7.3" W x 12" L x 0.8" D (18.6 cm x 30.5 cm x 2.2 cm)

  • 2 small: 5.6" W x 12" L x 0.8" D (14.3 cm x 30.5 cm x 2.2 cm)

• Weight: 73 lbs. (33.1 kg)

• Water Reservoir: 1.1 gallons (4.1 liters)

Electrical Requirements:

• 115 VAC, 50/60 Hz, 15 Amps, Single Phase
• 1425-watt immersion heater
• A dedicated electrical circuit is recommended

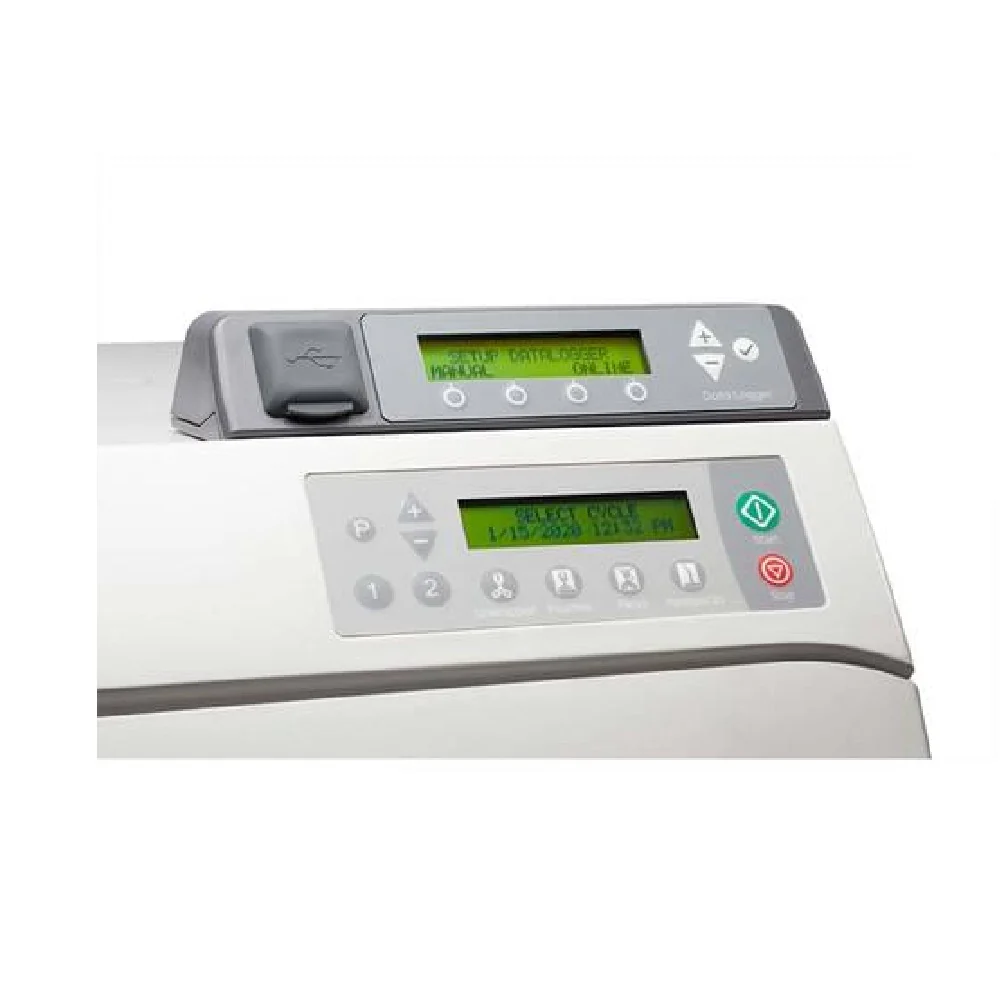

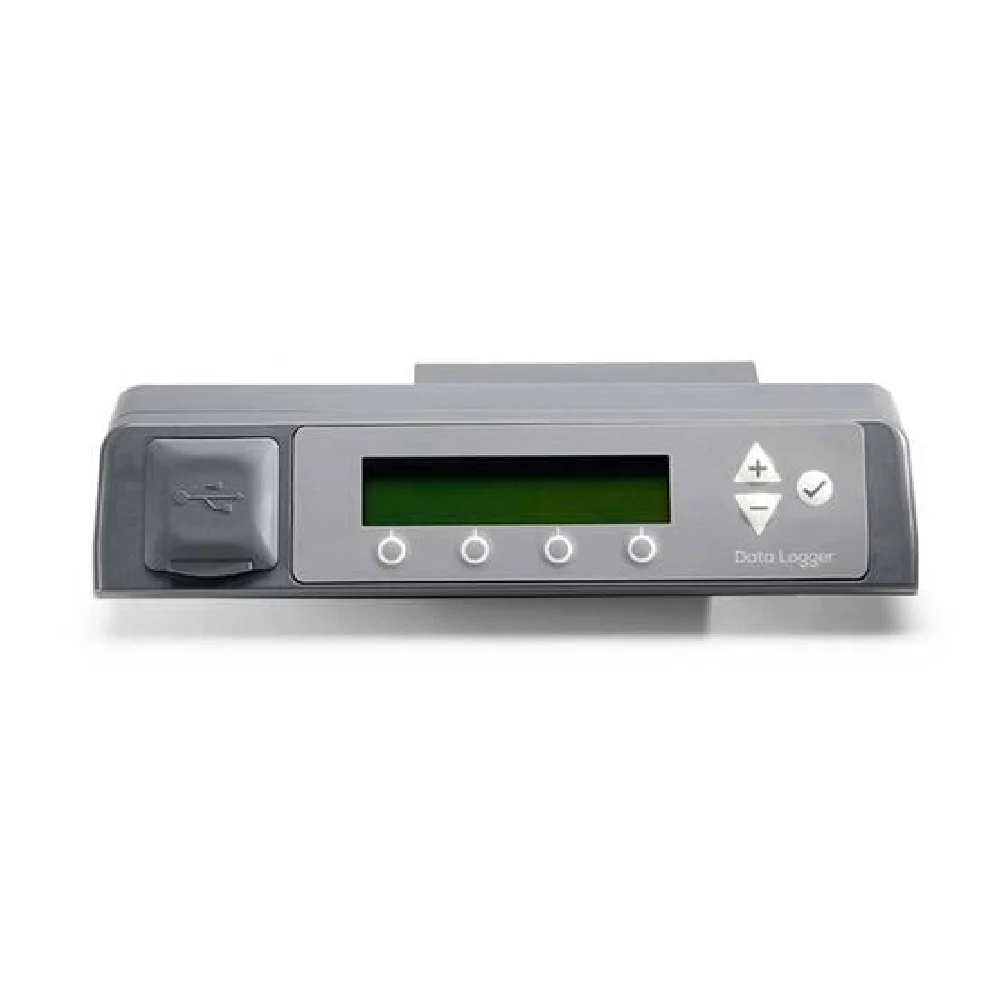

Data Logger Highlights:

• High-capacity storage for sterilization records
• USB connectivity for all M9 and M11 models
• Data exported in PDF format for easy record keeping
